Creating a Web Application Using the SAPUI5 Framework (Part 3)

In the previous article about creating a web application with the SAPUI5 framework, I described a sequence of steps in which several static records were displayed in the View. I added a couple of buttons, caught user clicks, and displayed a popup confirming that a button had been pressed.

See: Creating a Web Application Using the SAPUI5 Framework (Part 1)
See: Creating a Web Application Using the SAPUI5 Framework (Part 2)

In this article, I plan to add some meaningful data to the view and wrap it in elements I need. So, let’s talk about the data.

I constantly refer to the vendor's reference documentation, which provides a good description of the model in the MVC concept.

See: Models

A model in the Model View Controller concept holds the data and provides methods to retrieve the data from the database and to set and update data.

- JSON model: Can be used to bind controls to JavaScript object data, which is usually serialized in the JSON format. The JSON model is a client-side model and, therefore, intended for small data sets, which are completely available on the client. The JSON model supports two-way (default), one-way and one-time binding modes.

- XML model: A client-side model intended for small data sets, which are completely available on the client. The XML model does not contain mechanisms for server-based paging or loading of deltas. The XML model supports two-way (default), one-way and one-time binding modes.

- Resource model: Designed to handle data in resource bundles, mainly to provide texts in different languages. The resource model only supports one-time binding mode because it deals with static texts only.

A model in the Model-View-Controller (MVC) concept holds the data and provides methods to retrieve and update it from the database.

• JSON model: Used to bind controls to JavaScript object data (typically in JSON format). It’s a client-side model meant for small data sets entirely available on the client. Supports two-way (default), one-way, and one-time binding.
• XML model: Also a client-side model for small, fully client-available data sets. No built-in support for server paging or delta loading. Supports two-way (default), one-way, and one-time binding.
• Resource model: Handles data in resource bundles, mainly for multilingual text. Supports only one-time binding as it deals with static texts.

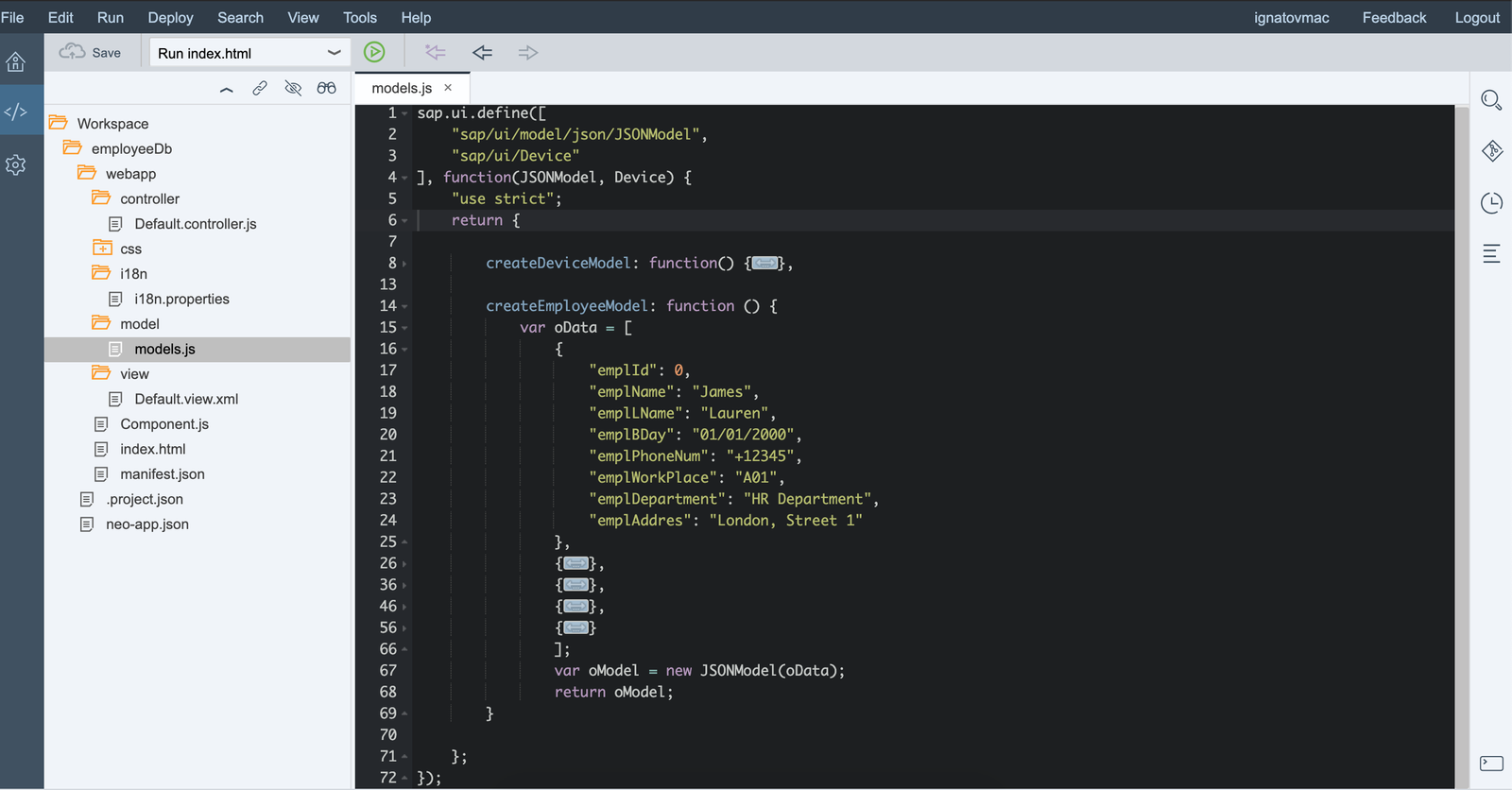

In the /webapp/models/model.js file, I define a data set that the application will use:

createEmployeeModel: function () {
            var oData = [
                {
                    "emplId": 0,
                    "emplName": "James",
                    "emplLName": "Lauren",
                    "emplBDay": "01/01/2000",
                    "emplPhoneNum": "+12345",
                    "emplWorkPlace": "A01",
                    "emplDepartment": "HR Department",
                    "emplAddres": "London, Street 1"
                },
                {
                    "emplId": 1,
                    "emplName": "John",
                    "emplLName": "Schiphol",
                    "emplBDay": "01/01/2001",
                    "emplPhoneNum": "+12346",
                    "emplWorkPlace": "C02",
                    "emplDepartment": "IT Department",
                    "emplAddres": "Bruges, Street 2"
                },
                {
                    "emplId": 2,
                    "emplName": "Sandy",
                    "emplLName": "Reed",
                    "emplBDay": "01/01/2002",
                    "emplPhoneNum": "+12348",
                    "emplWorkPlace": "B841",
                    "emplDepartment": "PR Department",
                    "emplAddres": "Geneva, Street 3"
                },
                {
                    "emplId": 3,
                    "emplName": "Iggy",
                    "emplLName": "Pop",
                    "emplBDay": "01/01/2004",
                    "emplPhoneNum": "+166668",
                    "emplWorkPlace": "A83",
                    "emplDepartment": "Logistic Department",
                    "emplAddres": "Miami, Street 3"
                },
                {
                    "emplId": 4,
                    "emplName": "Lou",
                    "emplLName": "Reed",
                    "emplBDay": "01/01/2003",
                    "emplPhoneNum": "+882348",
                    "emplWorkPlace": "Q773",
                    "emplDepartment": "Press Department",
                    "emplAddres": "New York, Street 4"
                }
                ];
                var oModel = new JSONModel(oData);
                return oModel;
        }

    };

See: Components
Components are independent and reusable parts used in SAPUI5 applications.

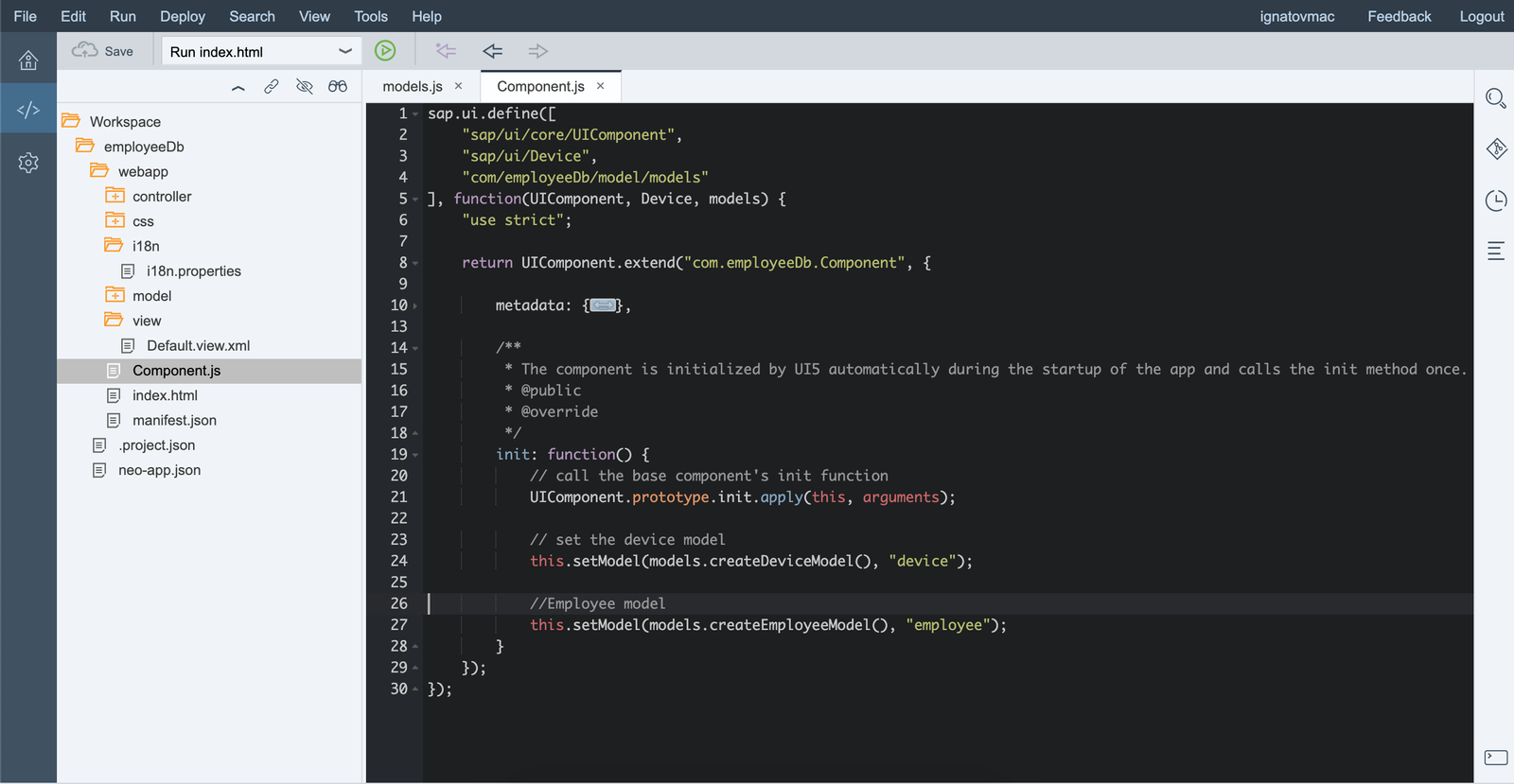

Load the data model into the application by editing the /webapp/Component.js file:

//Employee model
this.setModel(models.createEmployeeModel(), "employee");

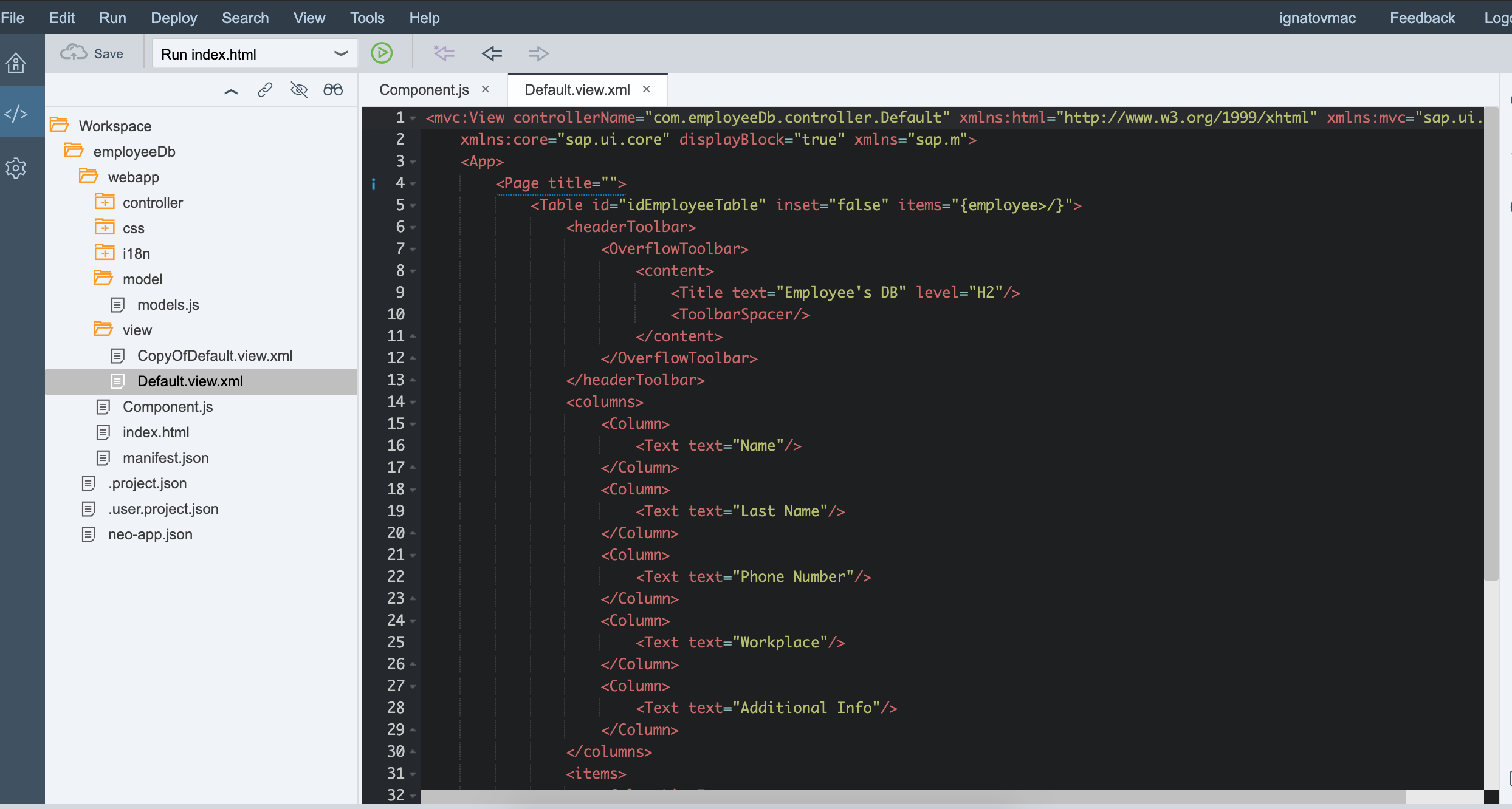

In the view, I add a table and bind it to the employee model data. This is done in /webapp/View/Default.view.xml:

<mvc:View controllerName="com.employeeDb.controller.Default" xmlns:html="http://www.w3.org/1999/xhtml" xmlns:mvc="sap.ui.core.mvc"
    xmlns:core="sap.ui.core" displayBlock="true" xmlns="sap.m">
    <App>
        <Page title="">
            <Table id="idEmployeeTable" inset="false" items="{employee>/}">
                <headerToolbar>
                    <OverflowToolbar>
                        <content>
                            <Title text="Employee's DB" level="H2"/>
                            <ToolbarSpacer/>
                        </content>
                    </OverflowToolbar>
                </headerToolbar>
                <columns>
                    <Column>
                        <Text text="Name"/>
                    </Column>
                    <Column>
                        <Text text="Last Name"/>
                    </Column>
                    <Column>
                        <Text text="Phone Number"/>
                    </Column>
                    <Column>
                        <Text text="Workplace"/>
                    </Column>
                    <Column>
                        <Text text="Additional Info"/>
                    </Column>
                </columns>
                <items>
                    <ColumnListItem>
                        <cells>
                            <Text text="{employee>emplName}"/>
                            <Text text="{employee>emplLName}"/>
                            <Text text="{employee>emplPhoneNum}"/>
                            <Text text="{employee>emplWorkPlace}"/>
                            <core:Icon src="sap-icon://process"/>
                        </cells>
                    </ColumnListItem>
                </items>
            </Table>
        </Page>
    </App>
</mvc:View>
