Dynamically Adding a Tile to the SAP Fiori Launchpad

Some time ago, I explored the option of adding a tile to the SAP Fiori Launchpad.

See the post: How to Add a Tile to the SAP Fiori Launchpad?

In this note, I want to look at an implementation approach that can be used when a customer requires dynamically adding a tile to a user's launchpad — that is, based on certain conditions being met.

A launchpad plugin

See: Создание плагина для SAP Fiori Launchpad

An OData service to determine whether a tile should be added to the launchpad

See: Создание Web приложения с помощью фреймворка SAPUI5 (6)

Class sap.ushell.services.Bookmark

See: class sap.ushell.services.Bookmark

Add a tile to the SAP Fiori Launchpad for a user, provided that the user has been assigned a specific role in the backend system. The new tile can be added without linking it to a specific tile catalog already available to the user.

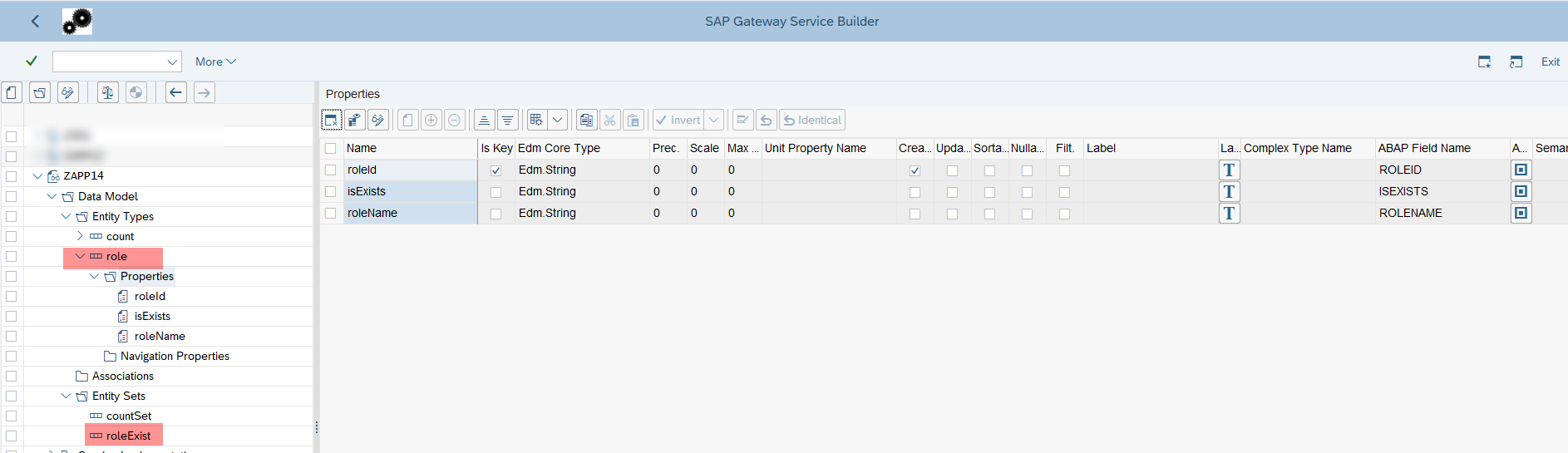

The OData service I plan to use to determine whether the user has the required role contains an EntitySet with the following properties.

See:  Create Entity Sets

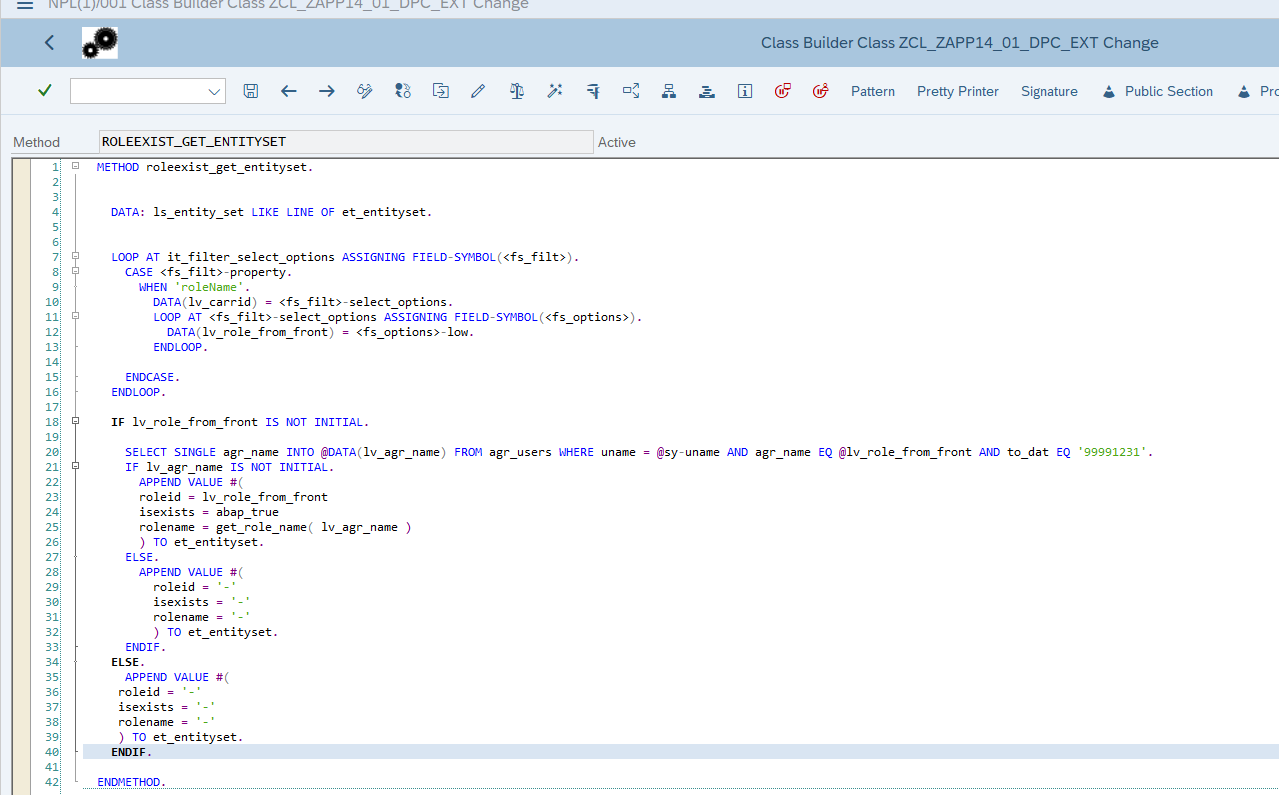

The population of the required EntitySet is implemented in the *DPC_EXT class of the OData service.

See: Extending an OData Service Using Service Builder

Example:

METHOD roleexist_get_entityset.


    DATA: ls_entity_set LIKE LINE OF et_entityset.


    LOOP AT it_filter_select_options ASSIGNING FIELD-SYMBOL(<fs_filt>).
      CASE <fs_filt>-property.
        WHEN 'roleName'.
          DATA(lv_carrid) = <fs_filt>-select_options.
          LOOP AT <fs_filt>-select_options ASSIGNING FIELD-SYMBOL(<fs_options>).
            DATA(lv_role_from_front) = <fs_options>-low.
          ENDLOOP.

      ENDCASE.
    ENDLOOP.

    IF lv_role_from_front IS NOT INITIAL.

      SELECT SINGLE agr_name INTO @DATA(lv_agr_name) FROM agr_users WHERE uname = @sy-uname AND agr_name EQ @lv_role_from_front AND to_dat EQ '99991231'.
      IF lv_agr_name IS NOT INITIAL.
        APPEND VALUE #(
        roleid = lv_role_from_front
        isexists = abap_true
        rolename = get_role_name( lv_agr_name )
        ) TO et_entityset.
      ELSE.
        APPEND VALUE #(
          roleid = '-'
          isexists = '-'
          rolename = '-'
          ) TO et_entityset.
      ENDIF.
    ELSE.
      APPEND VALUE #(
     roleid = '-'
     isexists = '-'
     rolename = '-'
     ) TO et_entityset.
    ENDIF.

  ENDMETHOD.

Example implementation of the onInit() function:

See:  SAP Fiori Launchpad Extensibility

init: function() {

            var oBookmarkService = sap.ushell.Container.getService("Bookmark");
            var sUrl = "/sap/opu/odata/SAP/ZAPP14_SRV_01";

            var oDataModel = new sap.ui.model.odata.v2.ODataModel(sUrl, {
                json: true
            });
            var oFilters = [new sap.ui.model.Filter("roleName", "EQ", "ZDEVELOPER")];

            oDataModel.read(\'/roleExist\', {
                filters: oFilters,
                success: function(oData, response) {
                    var oFlpModel = new sap.ui.model.json.JSONModel({});
                    oFlpModel.setData(oData.results);
                    sap.ui.getCore().setModel(oFlpModel, "oFlpMdl");
                },
                error: function(oError) {}
            });

            oDataModel.attachBatchRequestCompleted(function(oData) {
                var oRole = sap.ui.getCore().getModel("oFlpMdl").getData(oData);
                if (oRole[0].isExists === "X") {

                    oBookmarkService.countBookmarks("#ZBOOKMARK-display").done(function(iCount) {
                        var oRoleModel2 = new sap.ui.model.json.JSONModel({});
                        oRoleModel2.setData(iCount);

                        switch (iCount) {
                            case (0):
                                oBookmarkService.addBookmark({
                                    title: "Application title",
                                    url: "#ZBOOKMARK-display",
                                    icon: "sap-icon://developer-settings",
                                    info: "Dynamic tile loaded",
                                    subtitle: oRole[0].roleName
                                });
                                break;
                            case (1):
                                return;
                                break;
                            case (2):
                                oBookmarkService.deleteBookmarks("#ZBOOKMARK-display");
                                break;
                            default:
                                return;
                                break;
                        }
                    }).fail(function(sMessage) {
                    });
                } else {
                    oBookmarkService.deleteBookmarks("#ZBOOKMARK-display");
                }

            });
        }

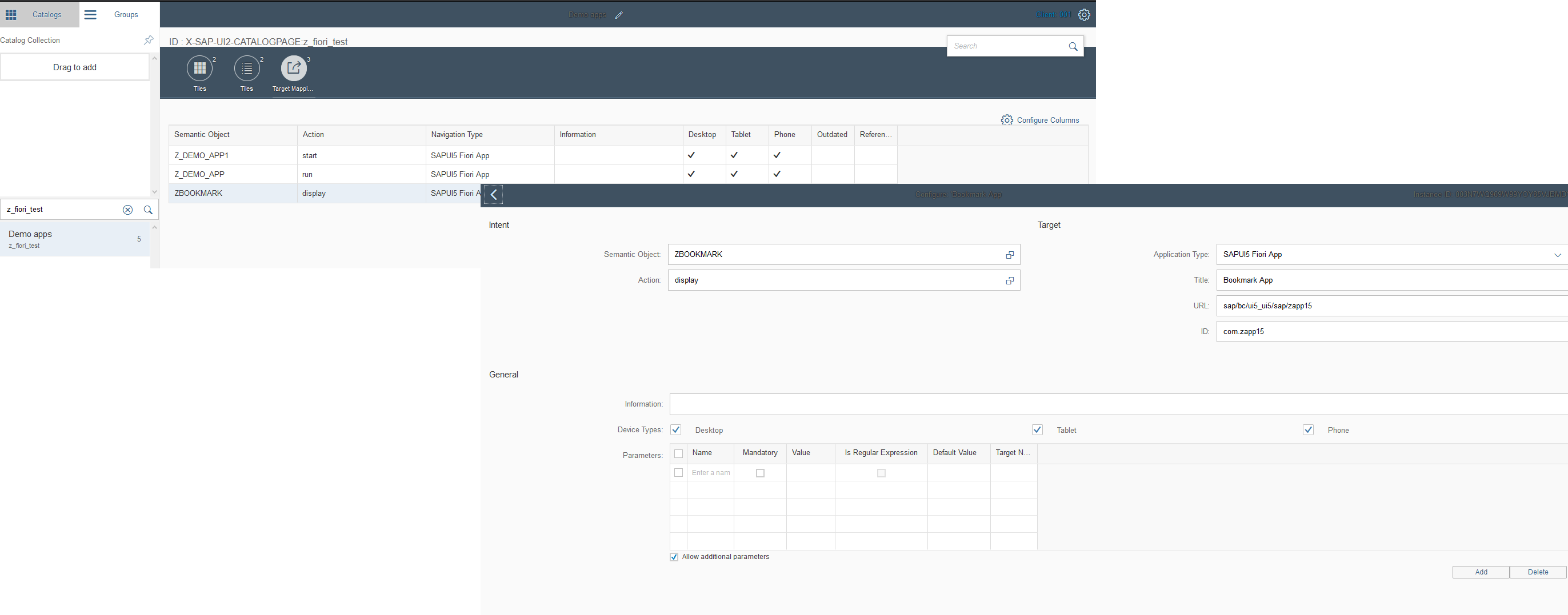

To ensure that the application launches when the user clicks on the added tile, you need to configure Target Mapping in one of the catalogs available to the user.

See: Configuring Navigation

See: Configuring Target Mappings

Thank you for your time. Winter will be long, but everything will work out as usual.

Hugs, ignatov
