SAP Idocs. Creating and Configuring Change Pointers for Idoc from Scratch

Having broken down the components of setting up and developing a custom Idoc, it makes sense to do the same for the process of configuring and developing change pointers in connection with a newly created Idoc. That’s exactly the goal of this post, as it seems a logical continuation of my previously published material.

See article: SAP Idocs. Creating and Configuring a Custom Idoc from Scratch

Enable the creation of change pointers for a custom message type. A change pointer should be generated upon modification of a Personnel Administration infotype. Based on the generated change pointer, an Idoc should be created and sent to another SAP system.

See: Change Pointer (Master Data Distribution)
See: Distributing Master Data with the SMD Tool

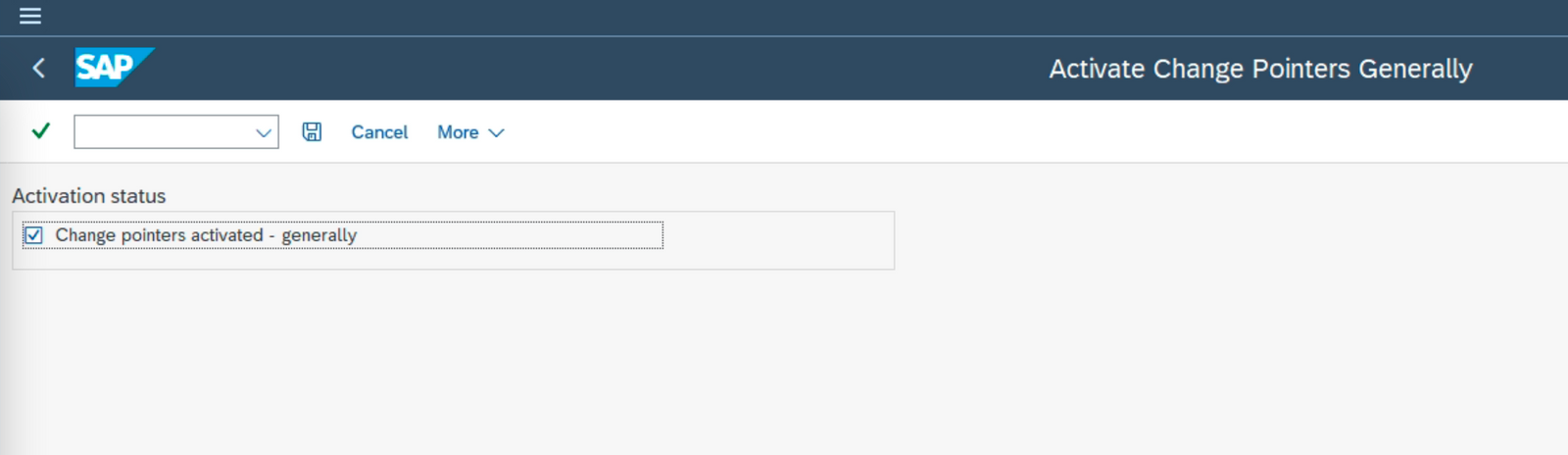

Activate the change pointer creation capability in the system by executing transaction BD61.

According to the task, a change pointer should be created when editing a Personnel Administration infotype record. Tracking of infotype changes will be handled by an implementation of BAdI HRPAD00INFTY (which is currently not implemented). The actual creation of the change pointer will be performed by calling the function module CHANGE_POINTERS_CREATE_DIRECT inside the new BAdI implementation.

See article: How to Define Additional Logic for a PA Infotype?

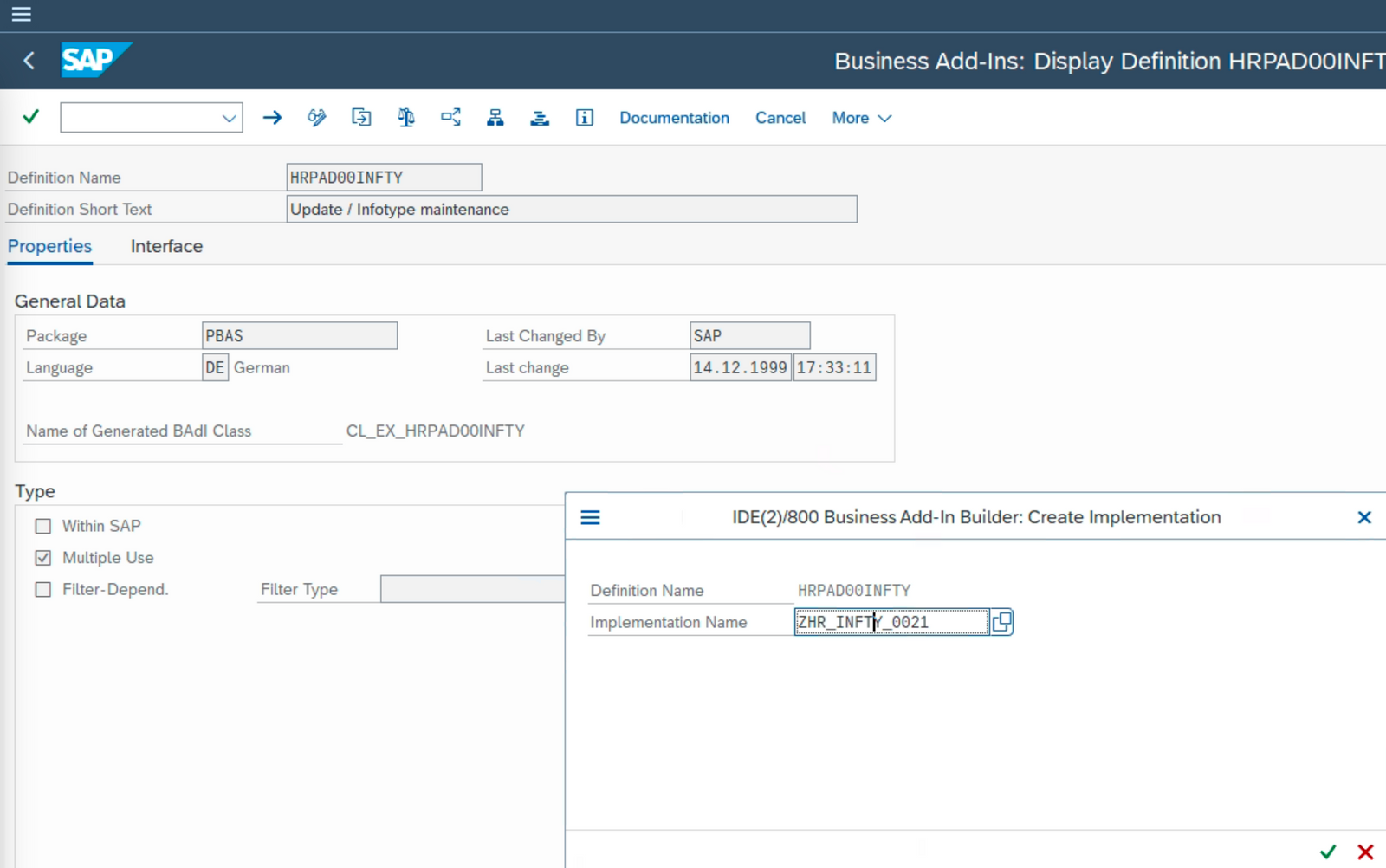

You can create a new BAdI implementation using transaction SE18.

Note: The ABAP code shown below is meant for demonstration purposes only. It must be adapted before use in any real project.

Also note: by default, SAP does not manage indicators (Insert, Update, Delete) for newly created change pointers. Depending on the business requirement, the logic for setting and assigning these indicators will have to be developed by the consultant and developer.

The following video clip shows the sequence of actions in which a PA infotype record is created/edited/deleted, followed by a check for the corresponding change pointer entry in table BDCP2.

Using transaction BD64, assign the message type to the partner system to which the Idoc generated from the change pointer should be sent.

See: Model Distribution

Based on the change pointer stored in table BDCP2, create an Idoc with the relevant content. This cannot be done without ABAP. Fortunately, this task becomes manageable knowing that you can look at the source code of existing function modules under the pattern MASTERIDOC_CREATE_SMD_* in transaction SE37.

The following ABAP snippet demonstrates this:

  DATA: distrimodel     LIKE bdi_model OCCURS 0 WITH HEADER LINE,
        change_pointers LIKE STANDARD TABLE OF bdcp,
        change_pointer  LIKE bdcp,
        lt_cp           TYPE TABLE OF bdicpident,
        lv_subty        TYPE p0021-subty,
        lt_0021         TYPE TABLE OF  p0021,
        it_data         TYPE TABLE OF edidd,
        it_data1        TYPE TABLE OF edidd,
        ls_idoc_body    TYPE z1i0021,
        ls_data         TYPE edidd,
        lt_comm_idoc    LIKE edidc OCCURS 0 WITH HEADER LINE,
        s_ctrl_rec      LIKE edidc.

  CONSTANTS: lc_message_type TYPE bdcps-mestype  VALUE 'ZFAMILY'.

  CALL FUNCTION 'CHANGE_POINTERS_READ'
    EXPORTING
      message_type                = lc_message_type
      read_not_processed_pointers = 'X'
    TABLES
      change_pointers             = change_pointers
    EXCEPTIONS
      error_in_date_interval      = 1
      error_in_time_interval      = 2
      OTHERS                      = 3.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.

  LOOP AT change_pointers INTO change_pointer.

    IF change_pointer-cretime+0(8) <= sy-datum.

      DATA(lv_pernr) = change_pointer-tabkey+1(8).
      DATA(lv_infty) = change_pointer-tabkey+9(4).
      DATA(lv_strlen) = strlen( change_pointer-tabkey ).

      IF lv_strlen = 30.
        lv_subty = change_pointer-tabkey+13(1).
        DATA(lv_begda) = change_pointer-tabkey+14(8).
        DATA(lv_endda) = change_pointer-tabkey+22(8).
      ELSE.
        lv_subty = change_pointer-tabkey+13(2).
        lv_begda = change_pointer-tabkey+15(8).
        lv_endda = change_pointer-tabkey+23(8).
      ENDIF.

      ls_data-segnam = 'Z1I0021'.
      ls_data-mandt  = sy-mandt.

      CALL FUNCTION 'HR_READ_INFOTYPE'
        EXPORTING
          tclas     = 'A'
          pernr     = CONV prelp-pernr( lv_pernr )
          infty     = CONV prelp-infty( lv_infty )
          begda     = CONV prelp-begda( lv_begda )
          endda     = CONV prelp-endda( lv_endda )
        TABLES
          infty_tab = lt_0021.

      IF lt_0021 IS NOT INITIAL.

        READ TABLE lt_0021 ASSIGNING FIELD-SYMBOL() WITH KEY subty = lv_subty.

        IF  IS ASSIGNED.
          ls_idoc_body-pernr = -pernr.
          ls_idoc_body-begda = -begda.
          ls_idoc_body-endda = -endda.
          ls_idoc_body-rel_type = -subty.
          ls_idoc_body-dob = -fgbdt.
          ls_idoc_body-first_name = -favor.
          ls_idoc_body-last_name = -fanam.
          ls_idoc_body-gender_key = -fasex.
          ls_data-docnum  = change_pointer-cpident.
          ls_data-sdata  = ls_idoc_body.
          APPEND ls_data TO it_data.
        ELSE.
          IF change_pointer-cdchgid EQ 'D'.
            ls_idoc_body-pernr = -pernr.
            ls_idoc_body-begda = -begda.
            ls_idoc_body-endda = -endda.
            ls_idoc_body-rel_type = -subty.
            ls_data-sdata  = ls_idoc_body.
            ls_data-docnum  = change_pointer-cpident.
            APPEND ls_data TO it_data.
          ENDIF.
        ENDIF.
      ELSE.
        ls_idoc_body-pernr = lv_pernr.
        ls_idoc_body-begda = lv_begda.
        ls_idoc_body-endda = lv_endda.
        ls_idoc_body-rel_type = lv_subty.
        ls_data-sdata  = ls_idoc_body.
        ls_data-docnum  = change_pointer-cpident.
        APPEND ls_data TO it_data.
      ENDIF.

    ELSE.
      ls_idoc_body-pernr = lv_pernr.
      ls_idoc_body-begda = lv_begda.
      ls_idoc_body-endda = lv_endda.
      ls_idoc_body-rel_type = lv_subty.
      ls_data-sdata  = ls_idoc_body.
      ls_data-docnum  = change_pointer-cpident.
      APPEND ls_data TO it_data.
    ENDIF.

    CALL FUNCTION 'ALE_MODEL_INFO_GET'
      EXPORTING
        message_type = lc_message_type
      TABLES
        model_data   = distrimodel
      EXCEPTIONS
        OTHERS       = 0.

    IF distrimodel IS NOT INITIAL.

      s_ctrl_rec-mestyp = 'ZFAMILY' .  "Message type
      s_ctrl_rec-idoctp = 'ZHR_IT0021'. "Basic IDOC type
      s_ctrl_rec-rcvprt = 'LS'. "Partner type of receiver
      s_ctrl_rec-rcvprn = 'IDECLNT810'. "Part


      CALL FUNCTION 'MASTER_IDOC_DISTRIBUTE'
        EXPORTING
          master_idoc_control            = s_ctrl_rec "rec_control  " Control record of master IDoc
        TABLES
          communication_idoc_control     = lt_comm_idoc "it_control " Control records of created comm. IDocs
          master_idoc_data               = it_data " Data records of master IDoc
        EXCEPTIONS
          error_in_idoc_control          = 1
          error_writing_idoc_status      = 2
          error_in_idoc_data             = 3
          sending_logical_system_unknown = 4
          OTHERS                         = 5.
      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
                   WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
      ELSE.
        CLEAR lt_cp.

        APPEND VALUE #( cpident = change_pointer-cpident ) TO lt_cp.

        CALL FUNCTION 'CHANGE_POINTERS_STATUS_WRITE'
          EXPORTING
            message_type           = 'ZFAMILY'
          TABLES
            change_pointers_idents = lt_cp.
      ENDIF.

    ENDIF.
  ENDLOOP.

After a change pointer is successfully processed, a corresponding status flag should be set in table BDCP2 (BDCP2-PROCESS = 'X'). In ABAP, this is done by calling CHANGE_POINTERS_STATUS_WRITE.

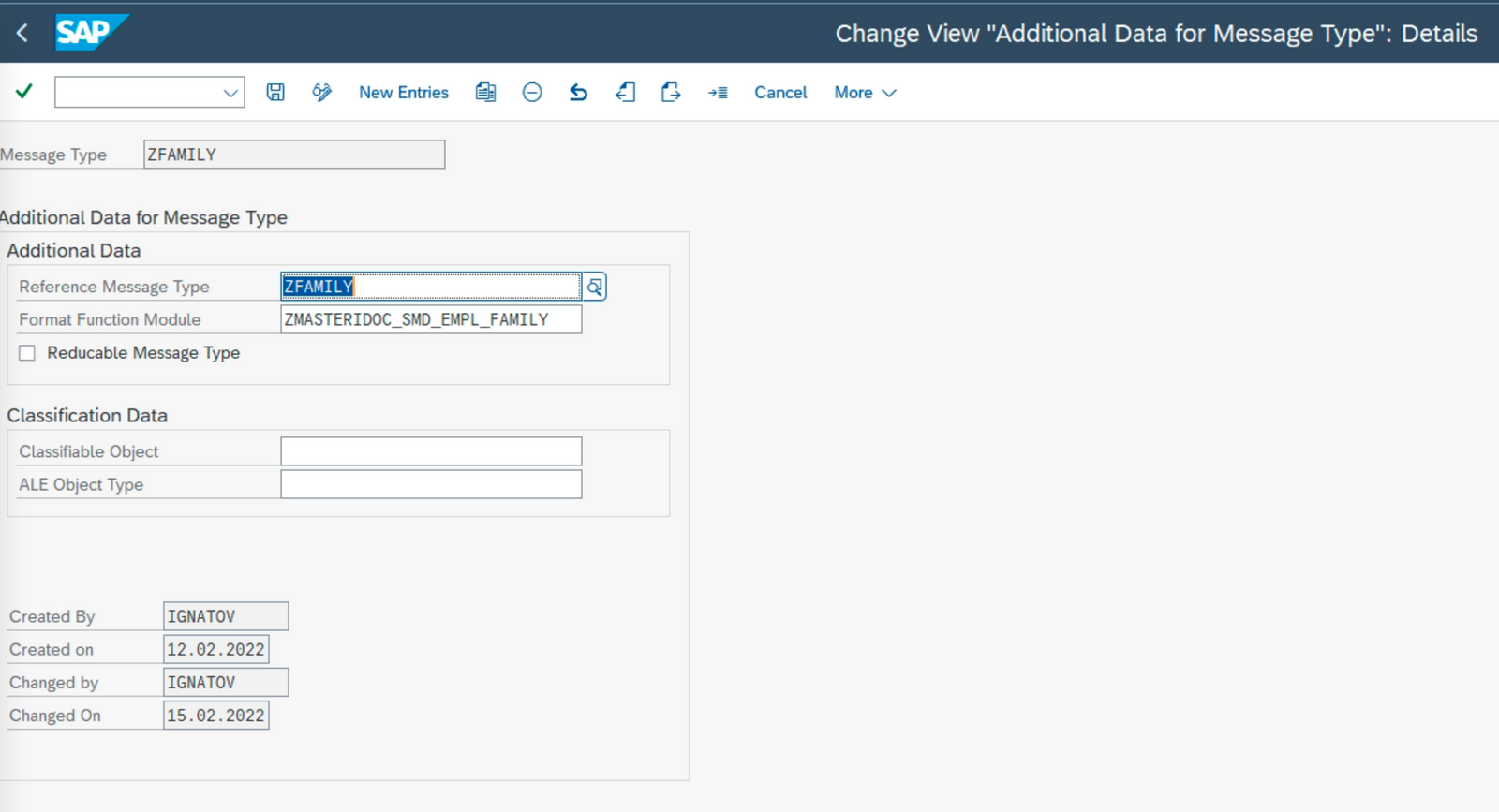

Assign the newly created FM to the appropriate message type using transaction BD60.

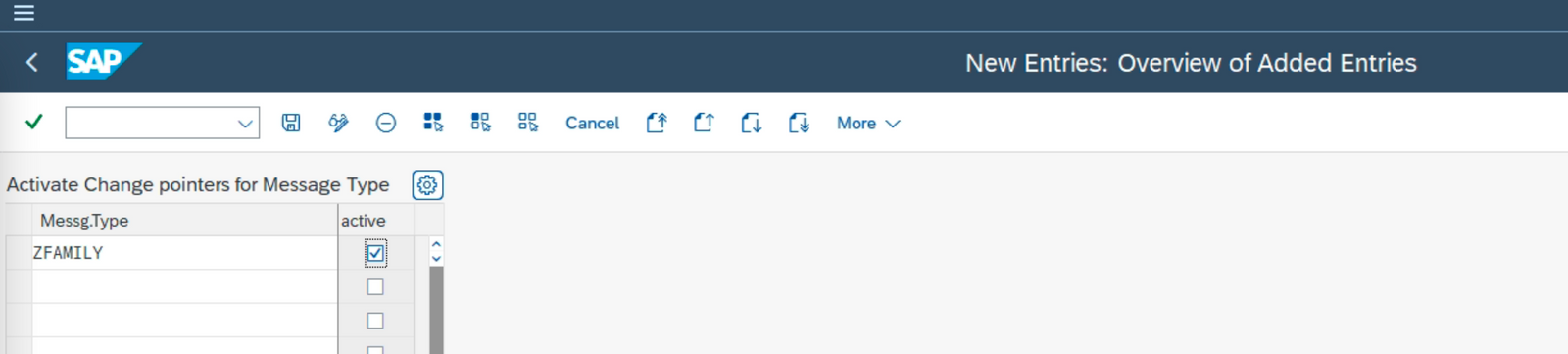

Activate change pointer creation for the desired message type using transaction BD50.

As described in a previous post on Idoc generation from change pointers, once the pointer entry is written to BDCP2, the program RBDMIDOC must complete the process by handling the specified message types.

See article: SAP IDocs. Change Pointers

The next video shows the sequence in which change pointers are created and program RBDMIDOC is run. The result is then reviewed by verifying the transmission of the generated Idoc to the receiving system. In this example, the Idoc is sent from client #800 to client #810 within the same system. In the "neighbor" client, the Idoc’s status and its impact on the employee’s master data are verified.

Deactivate the relevant message type in transaction BD50. See Step #7 — Activate Change Pointer for the Message Type.

The final video clip shows the process of changing employee master data with change pointer creation enabled, followed by the same actions with change pointer creation disabled.
